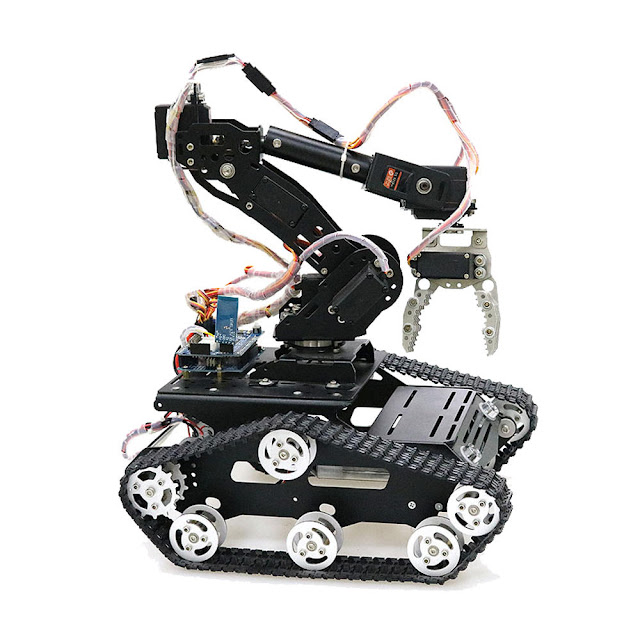

7Dof PS2 Control/WiFi Robot Arm Car Mobile Platform DIY Kit with Wifi Model/PS2 Controller/Motor Driver Board for Arduino

To Buy It Click Here

Please choose the version you want
Set 1 = Handle version (not included wifi modele)
Set 2= Wifi version (not included handle controller)

Features:



● Compatible with arduino;

● Simultaniously control 4ch DC motor and 16ch servo;You can control 2wd car or 4wd car.

● Product kit with handle control version, to realize the dream of DIY smart car.

● A combination of a smart car and a robotic arm that simultaneously implements to get hands-on more experience.

● Control modes: Can controlled by wifi (DT-06) and PS2 station. You can add the handle receiver on the driver board, so that you can control the car via handle.
  Also can add the wifi module or bluetooth mudule on the driver board, so that you can control the car via moboie phone.



File about product:

1. wiki about 4 road motor&16 road servo driver board
2. wiki information about 9v motor
3. SourceCdoe
4. App

Specifications:

- Material: Metal frame & aluminum alloy wheels
- Color: black
- Assembled car size: 300*240mm(L*W); highest size:122mm
- Motor: Dual 9v motor with Hall sensor(package Included)
- Servo: 996 servos(package Included)
- Package Weight: about 3.5KG

- Module pin description and schematic:

 - 16 road servo and 4 road motor drive board, using TB6612 4 road drive, PCA9685 for 16 road servo control.

 - Bring out the Arduino UNO I/O pin;

 - The maximum input voltage of the power supply is 15V/DC;

 - Reserve Bluetooth & WIFI module sockets;

 - Reserve PS2 handle socket;

 - 4 road DC motor drive, single-channel maximum drive current 1.2A average / 3.2A peak;

 - 16 road servo drive pin, the power supply can be switched by the external/internal power supply of jumper cap;

Note: Set 1 & Set 2 all include Arduino board, 1 x Smart car, 1 x Robot arm, dual motors and 996 servos.

Pacakge Included:

1 x Set 1 (Handle controller version)
1 x Set 2 (wifi version)
