Feature:
 An excellent stereo inspection microscope with i'ntensity-adjustable 144-LED ring light
 7x-45x super wide zoom magnification power
 Bright cool light 144-LED illumination system
 High resolution with great flatness and contrast, giving sharp and clear images
 Binocular head with 45 degree inclined 360 degree swiveling eye tubes
 Sharp stereo erect images with a wide field of view
 Crystal clear original true color microscope images
 Dual eye tubes with adjustable diopters
 Large working distance
 Sturdy all-metal table stand
 Accurate alignment reduces eye strain for longer periods of viewing
 Full optical glass elements
 Precise ground glass lenses
 Full metal chrome-plated mechanical components
 Adjustable interpupillary distance
 Rubber eye-guards included
 Specification:
 Image sensor: 34 21 16 14 12 10 8 5 3 megapixel P'anasonic CMOS sensor 1/2.33 inch
 Effective pixel: 34 megapixel
 Pixel size:1.335μm × 1.335μm
 Frame rate:60fps
 Definition:FULL HD
 Housing:metal
 Lens:C/CS
 Video format: MP4
 Digital Zoom:Support
 Brightness control:Auto/manual
 Color:R/G/B adjustable
 Film and r'ecord:Support
 Cross cursor:Support multi-color, size adjustable
 Transverse and vertical line:
 Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
 Different color,5 horizontal line , 5 vertical line,any positions
 TF card interface:Max 64G
 HDMI interface:Standard HDMI output (Type A)
 USB interface:Standard usb2.0 interface (Type B)
 Input Voltage: DC 12V
 Expand the scope of operations,any orientation and angle observed the objectives.
 Vertical Height : 400mm
 Horizontal Distance:770mm
 Base size: 98x80x116mm
 Max Clamp:50mm
 Steel Gears on Focusing Holder.
 Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm.
 144 bright white LED bulbs
 100,000 hours of life
 Intense and focused shadow-free illumination
 The brightness of 0-100%Adjustable,high brightness
 Variable i'ntensity control
 Power input: 100-240V, 50-60HZ
 Suit for the dia of the lens: 30mm-160mm

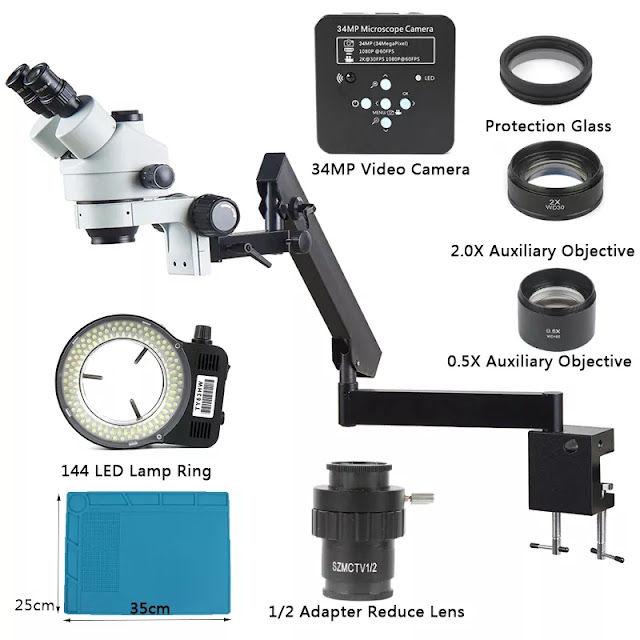

 Package Includes:
 1 x Trinocular Stereo Zoom Head
 1 x Pair of Super Widefield 10X20MM Eyepieces
 1 x 144-LED Ring Light
 1 x Focusing Rack
 1 x C-mount Adapter
 1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
 1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
 1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
 1 x High Temperature Resistant Working Pad
 1 x Articulating Arm Clamp Microscope Bracket
 1 x HDMI  USB Video Camera
 1 x HDMI Cable
 1 x USB Cable
 1 x 8GB TF card
 1 x IR Remote control
 1 x Power Supply Adapter (EU)
 1 x SZMCTV 1/2 Lens
 Note:
 We will send you a plug adapter according to your country.
