Features:
3
In 1 Function: This product ingeniously integrates digital
oscilloscope, transistor tester and signal generator functions into one
machine.
Digital
Oscilloscope Function: With the real-time sampling rate of 10MS/s and
bandwidth of 500Khz. Support maximum measurement of 400V voltage signal.
With complete trigger function (automatic, single, regular). Equipped
with an efficient button AUTO, the measured waveform can be displayed
without cumbersome adjustments.
Transistor
Tester Function: Automatically identify and measure various
transistors, including NPN and PNP triode, N-channel and P-channel metal
oxide-semiconductor field effect transistor, JFET, diodes, double
diodes, thyristors,as well as resistors, inductors, capacitors,
field-effect transistor, etc. passive component. Automatic detection of
pin definitions.
Signal

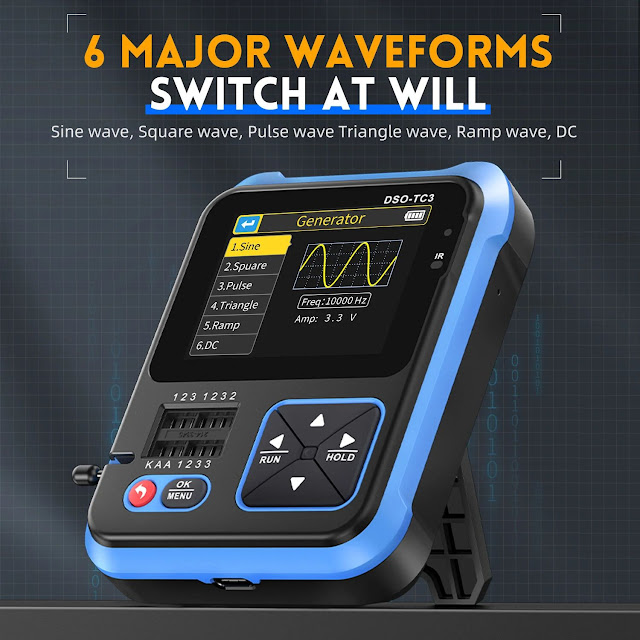

Generator Function: 6 kinds of signal waveforms: sinewave, pulsewave,
trianglewave, rampwave, direct current. 1-100KHz adjustable output
frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty
ratio.
Tool
Box Function: Automatically analyze specific Protocol infrared code.
Other function modes: including circuit continuity test, 0-40V input
voltage measurement, PWM output, 0-32V diode measurement, temperature
and humidity sensors measurement, etc.
Compact Size: Lightweight and portable, also can be used as a portable tool for on-site debugging.
Reliable Quality: Adopts ABS antidrop housing, antislip concave design, high elasticity keys, simple interface, easy operation.
2.4inch
Digital TFT Display: TFT color screen, high resolution display with LED
backlight, with bright colors and high contrast, you can see the data
clearly in bright light.
High
Accuracy: Infrared decoding design, quick response, accurate capture of
highly sensitive response signal, fast and accurate measurement with
small error.
Rich and Powerful Features: One button for automatic adjustment, support for free switch, support intelligent fire preventions.
Long
Endurance: Built-in 1500mAh high-capacity rechargeable polymer lithium
battery, long lasting lifespan, Type-C interface, continuous power
supplys without isolation transformer, safer to use.
Folding
Bracket: Comes with invisible bracket, integrated folding, stable
placement, free your hands, does not occupy too much space.
Wide
Applications: Suitable for mcu debugging, car repairing, home appliance
repairing, DIY electronic competition, power-supply debugging,
inverter, etc.
Specifications:
Name: 3in1 Digital Oscilloscope
Material: ABS
Type: standard , upgraded(optional)
Display: 2.4 inches TFT color screen
Battery: Built-in 1500mah rechargeable lithium battery (included)
Charging interface: USB Type-C, +5V
Digital Oscilloscope: 10MSa/s
Real-time sample rate: 500Khz
Analog Bandwidth: 1ΜΩ
Input resistance: Alternating Current/Direct Current
Coupling method: 400V
Test voltage ranges: 10mV-10V
Vertical Sensitivity (x1): 1us-10s
Horizontal time base ranges:
Trigger mode: Auto / Normal / Single
Trigger type: Rising edges / Falling edges
Waveform Freeze: Yes
Automatic measurement: Yes
Transistor Tester:
Capacitor: 25pF~100mF
Resistor: 0.01Ω ~ 50ΜΩ
Inductor: 10uH~1000uH
Battery: 0.1~4.5V
Input voltage: 0~40V
DS18B20: 0-85℃
DHT1: 0-60°C/5-95%
Signal Generator:
Sinewave: 1-10KHz/0-3.3V/50%
SQW: 1-100KHz/3.3V/50%
Pulsewave: 1-100KHz/3.3V/0-100%
Trianglewave: 1-10KHz/0-3.3V/50%
Ramp: 1-10KHz/0-3.3V/0-100%
Direct current: 0-3.3V
Item size: 110 * 76 * 30mm / 4.33 * 2.99 * 1.18in
Package size: 140 * 125 * 55mm / 5.51 * 4.92 * 2.17in
Package weight:
Standard configuration: 300g / 10.58ounce
High configuration: 345g / 12.17ounce
Packing List (Standard):
1 * 3in1 Digital Oscilloscope
3 * Test Hook
1 * Probe
1 * Type-C Cable
1 * Manual
OR
Packing List (Upgraded):
1 * 3in1 Digital Oscilloscope
1 * Adaptor
1 * Probe
1 * High Pressure Probe
3 * Test Hook
1 * Type-C Cable
1 * Manual
