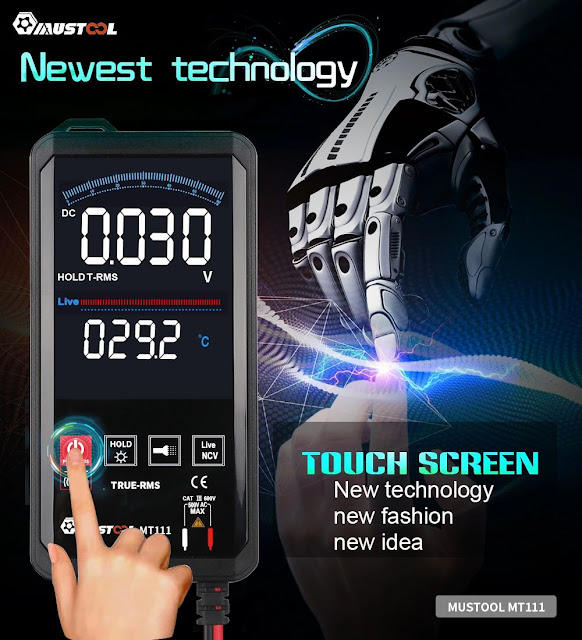

Mustool MT111 Digital Multimeter 6000 Counts Intelligent Scanning Digital Multimeter AC DC Measurement NCV True RMS Measurement

To Buy It Click Here

Characteristics:

1. General Characteristics:

1-1. Display mode: triple display LCD; main display, sub display, analog bar;

1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;

1-3. Measurement method: double integral A/D conversion;

1-4. Sampling rate: about 3 times per second;

1-5. Over range display: The highest position shows “OL”;

1-6.Continuous power operation function;

1-7. Low voltage display

1-8. Working environment：(0～40)℃，relative humidity＜80%;

1-9. Power: AAA 2* 1.5V battery;

1-10. Volume (size): 139×68×18mm (L×W×H);

1-11. Weight：about 175g;

2. Technical characteristics:

2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%

2-2. Performance (Note "▲" indicates that the meter has this function)

Function
DC voltage  DCV	▲
AC voltage  ACV	▲
Resistor / Diode / On-Off Test / Capacitor	▲
Frequency F	▲
Touch key	▲
Continuous power operation	▲
NCV	▲
Zero line / Fire line test	▲
Full unit symbol	▲
Backlight manual/Auto off	▲
True RMS measurement	▲
Temperature（℃/℉）	▲
Flashlight lighting	▲

MFE Fighter 2430mm Wingspan Compound Wing EPO VTOL Aerial Survey FPV RC Airplane KIT

To Buy It Click Here

Overview:

Fighter is a 10kg level VTOL fixed-wing carrier aircraft which was optimized repeatedly for two years and iterated 5 versions by the MFE Team.

Specifications:

Brand Name: MFE

Item Name: Fighter

Material: EPO,EVA,carbon fiber,PC,engineering plastics and etc.

Wingspan: 2430mm

Fuselage Length: 1450mm

Fuselage Height: 180mm

Wing Area: 72.5dm²

Suggested Flight Speed: 17~20m/s

Stalling Speed: 10m/s

Maximum Payload: 1.5kg

Payload Cabin Size: 280*160*110mm

Longest Flight Range: >150km(600g load)

Max. Take-off Weight: 11.5kg

Practical Ceiling Height: 4000m

Wind Resistance: 5

Take-off and Landing Approach: VTOL

Dismounting Way: Tool-free

Transport Case Size: 1.25mx0.34mx0.49m

CG: Under the raised position of fuselage hook and the wing root plastic(same position)

Features:

- Efficient Aerodynamics, on the basis of the conventional inverted T layout,the Fighter have optimized the aerodynamic figure and relative positions of the wings,horizontal tail,vertical tail and fuselage.

- Light but Stable.

- The wing and tail adopt a toolless quick-release structure, disassembly quickly.

- IPX3 waterproof level.

- Large fuselage cabin,low resistance.

English Manual, Click Here

Package Included:

1x MFE Fighter 2430mm Wingspan Compound Wing EPO VTOL Aerial Survey FPV RC Airplane KIT
